Dorma BTS75V Closer Body -Less All Parts

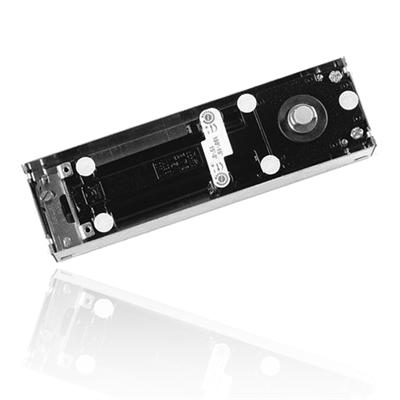

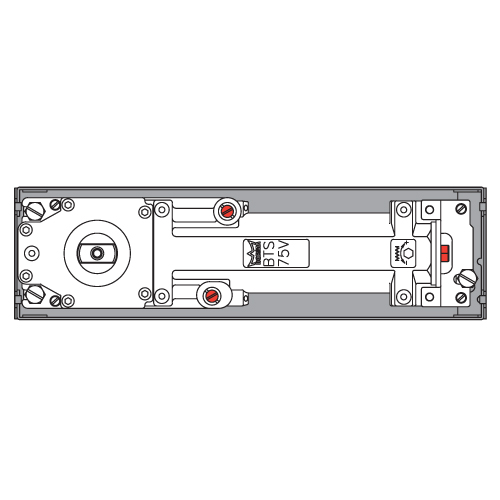

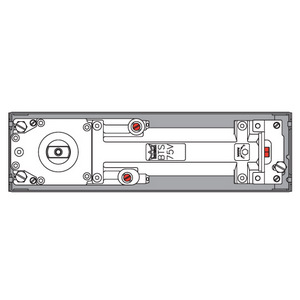

Dorma BTS75V Closer Body

Concealed Closer Body with Cement Case -Less All Other Parts

Application
Double or Single Acting
Interior or Exterior Doors
Weight to 260 lbs.
Interior Door Width to 3'-6"
Exterior Door Width to 3'-0"

Spring Size
Adjustable, ANCI 1-4

Hold Open
Specify Non-Hold Open (NHO), 90° Hold Open (HO-90) or 105° Hold Open (HO-105)
Barrier Free Models Non-Hold Open (BF-NHO) or 90° Hold Open (BF-HO-90)

Handing
Non-handed

Features

Dorma BTS75V Closer Body with Cement Case

• Adjustable spring size 1-4
• Can be installed and adjusted to meet 8.5 lb maximum opening force requirements for exterior doors
• Compact closer body and cement case 2" deep suited for thin slab concrete construction
• Closer body is non-handed
• Accommodates doors weighing up to 260 lbs. and measuring up to 3'-6" wide
• Mechanical backcheck at approximately 70° (Order BF-NHO or BF-HO-90 for no backcheck feature)
• Dual thermostatic control valves combined with hydraulic fluid provide controlled closing from 175°
• Optional single point hold open units available for 90° or 105°
• A pressure relief valve protects closer from damage caused by forced closing
• Closer adjustment in cement case provides 3/8" lateral, 1/4" longitudinal, and 5/32" height adjustment

Listed specifications for models stocked and available for shipment direct from Epivots.com. Please call for fire-rated, special finish or other configuration requirements.
