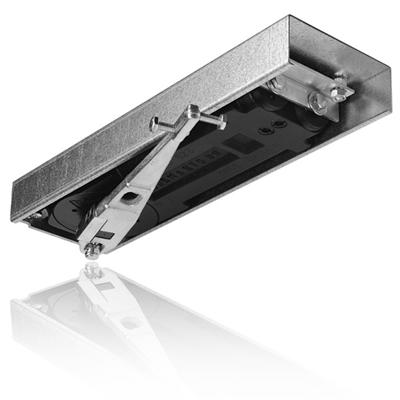

Dorma RTS88/05 Overhead Concealed Closer "05" Package

Dorma RTS88/05 Concealed Overhead Closer Package

Single or Double Acting Closer for Wood Door and Frame - Complete Package with Cover Plate

Back-Ordered

Application
Single or Double Acting
Exterior or Interior Doors
Weight to 250 lbs.
Door Sizes up to 4'-0" Interior and 3'-6" Exterior

Spring Size
Specify Size 2 (Light), 3 (Standard), 4 (Strong), BFE (Barrier Free Exterior) or BFI (Barrier Free Interior)

Hold Open
Specify Non-Hold Open (NHO) or Hold Open (HO)

Positive Dead Stop
Specify 90° or 105°

Handing
Non-handed

Finish
Specify 605, 606, 613, 625 or 626

Polished Brass	Satin Brass	Dark Bronze	Polished Chrome	Satin Chrome
605 (US3)	606 (US4)	613 (US10B)	625 (US26)	626 (US26D)

Notes
Not all options available for all sizes. Size 2 only available in 90° (for 105° Size 2 application, substitute BFE). BFE/BFI are available in 105° NHO or HO only.

Features
Complete Package for Wood Door & Frame includes Dorma Model RTS88 Closer Body, 8561 Cover Plate, 8832 Side Load Top Arm, 7421 Bottom Arm and 7471K Floor Bearing

• Compact closer body is designed to fit into headers as small as 1-3/4" x 4"
• Closer body is non-handed
• One closer for both single-acting or double-acting doors
• Accommodates a maximum door weight of 250 lbs.
• A pressure relief valve protects closer from damage caused by forced closing
• An integral positive stop limits door swing to 90° or 105°
• A mechanical backcheck slows down the door prior to contact with the positive stop
• The RTS88 offers a cast-iron body along with heavy-duty ball bearings at the spindle
